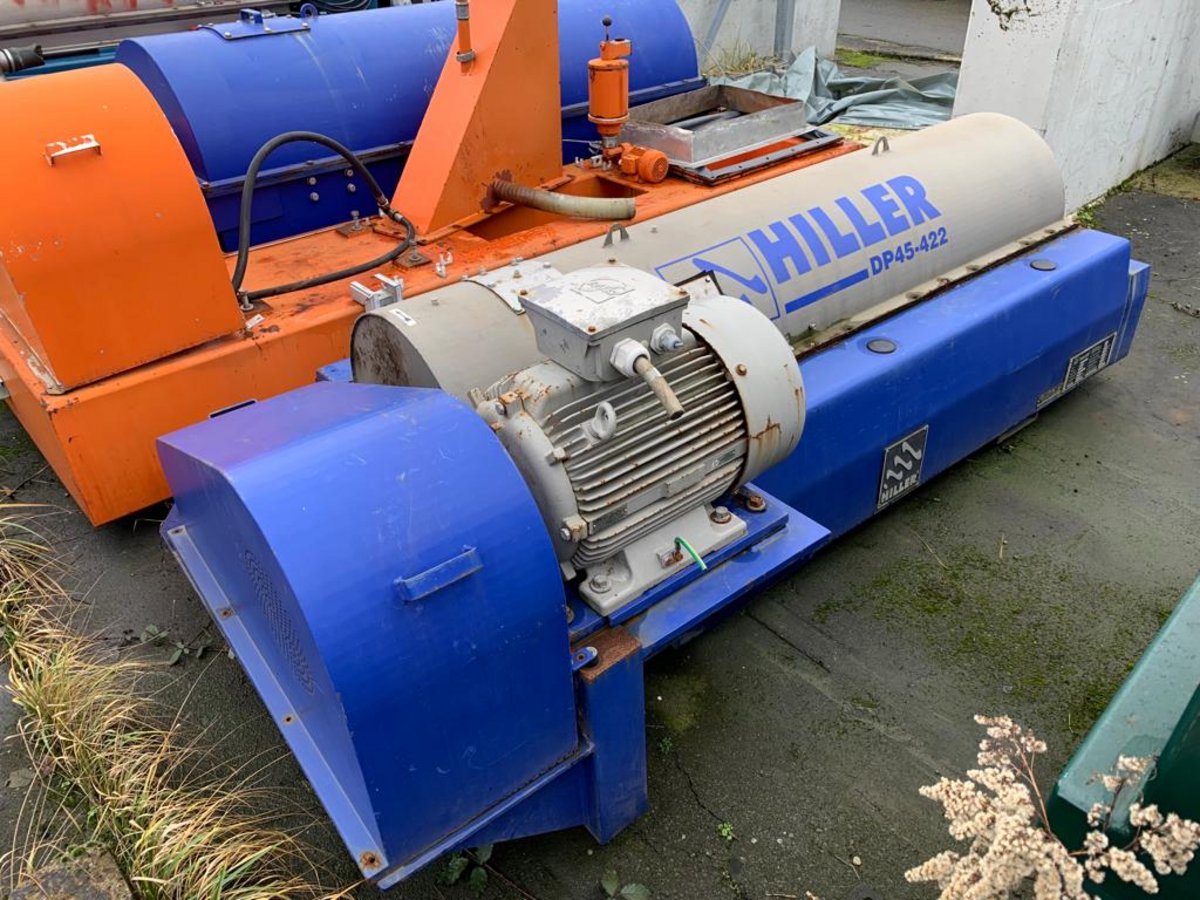

Dekanter Decapress DP45-422, mobil dewatering System

Mobil

No. RE-HU-2019-2212-DK30 | Dekanter / Zentrifuge

Request this machine

Product details

System	decanter / centrifuge, mobile dewatering system
Manufacturer	Hiller
Model	demonstration machine
System	Dewatering system as a compact system, ready-to-connect, operational unit mounted on a platform.
Execution	Interchangeable rack as a bridge with frame structure made of galvanized steel, plug and play integration into ongoing operations
Type	DP45N
Machine no.	on request
Year of construction	2019
Throughput capacity	up to max. 20 m3/h
max. Speed	3500 rpm
Acceleration	3063 x g
Inner diameter drum	approx. 450 mm
Parts in contact with product	stainless steel
Parts not in contact with the product	Steel
Drum length	1948 mm
Drum material	1.4392
Worm material	1.4404/1.4408
Structure	Centrifuge base made of steel with foot and support plates for holding and raising the centrifuge
Central exhaust	with compensator
Central chute	including central control
Pipework	Pipes in contact with the product made of stainless steel
Hydraulic unit	DP574 HD
Drum drive	45 kW
Control	frequency converter
Weight	approx. 220 kg
Tank volume	approx. 70 l
Feeding technology	Shredder with accessories
Type	Vogelsang Rota-Cut
Medium	thin sludge, digestate
Throughput	up to 25 m3/h
Speed	171 rpm
Drive	3 kW
Suction-pressure connection	DN 150
Regulation	automatic compressed air
Feed pump	Vogelsang sludge pump
Type	VX136-140
Output	50 m3/h
Drive	NORD geared motor
Delivery head	up to 2 bar
Flow rate	15-50 m3/h
Polymer processing	2-chamber batching system
Preparation capacity	up to 5000 l/h
Make	gvu-Technik DS 1200 So
Spiral conveyor	powder
Dosing	liquid concentrate pump Seepex 100l/h
Conveyor technology	double spiral conveyor
Output	6m3/h
Trough diameter	400 mm
Loading conveyor	pivoting
Length	approx. 4000mm
electrical engineering; Switchgear Hiller-VA / Rittal wired
Automation device	Siemens S7
Dimensions	approx. 5550x2150x2100 mm (LxWxH)
Transport weight	7500 kg
